Introduction

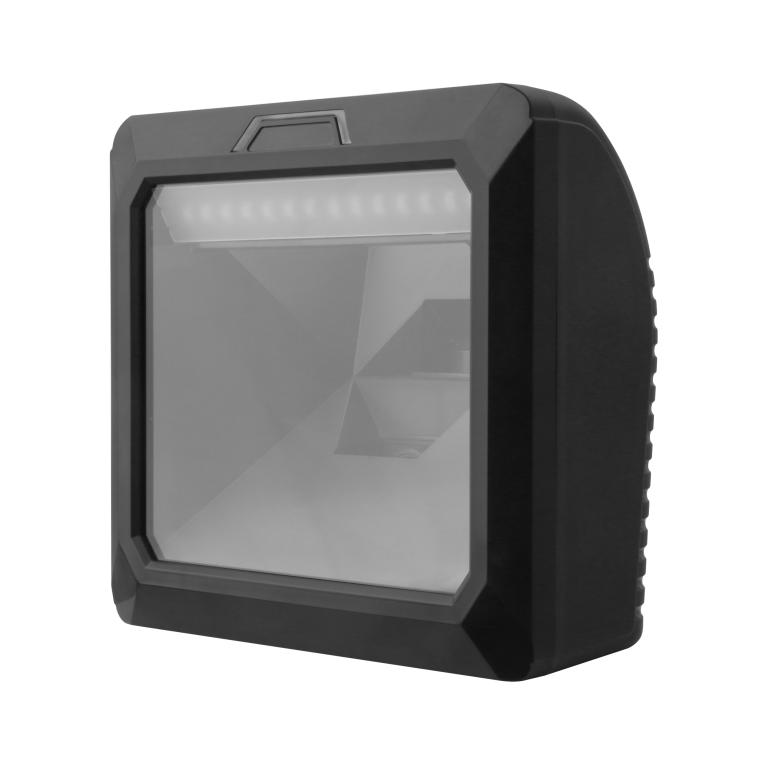

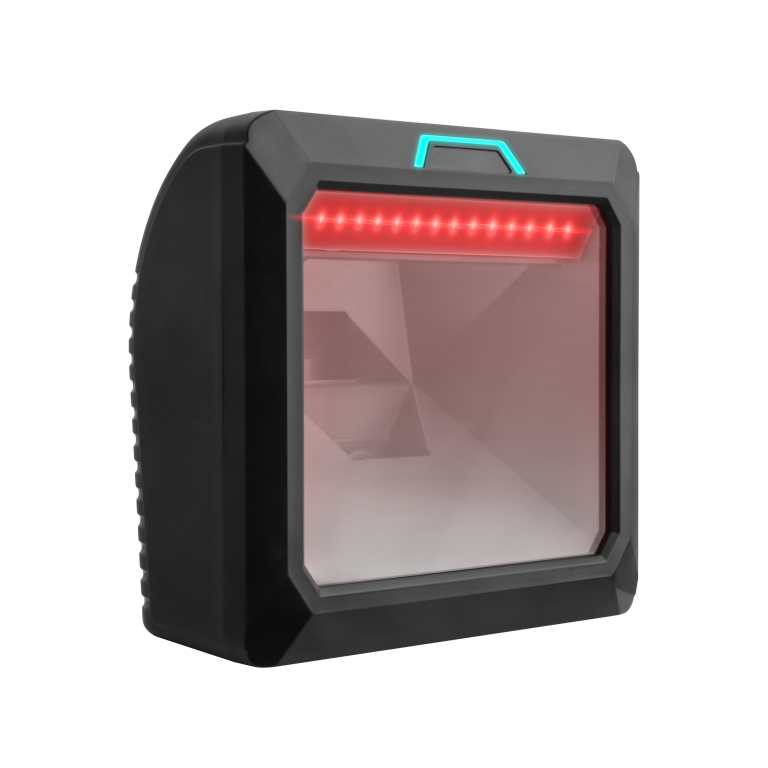

HP6280 Is a high-performance desktop two-dimensional image long-distance scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system, equipped with a large wide Angle of 1 million pixel global exposure camera. You can easily read the paper, goods, screen and other media on the one-dimensional code, QR code, strong reading performance. Suitable for large supermarkets, department stores, convenience stores, pharmacies, tobacco hotels and grocery stores, etc.
product features
> High-speed 1 m / second mobile tolerance, suitable for high traffic code scanning requirements.
> Large wide Angle lens, large viewing Angle, long distance effectively improve the reading efficiency.
> 1.3 million global exposure cameras, easy to read a variety of sizes of one dimension and QR codes, can adapt to more complex environments.

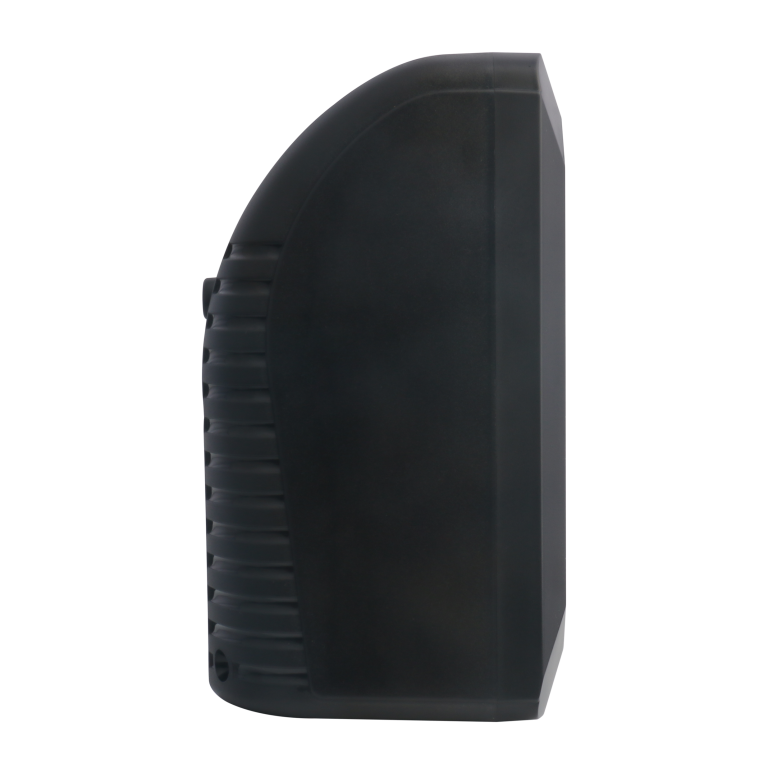

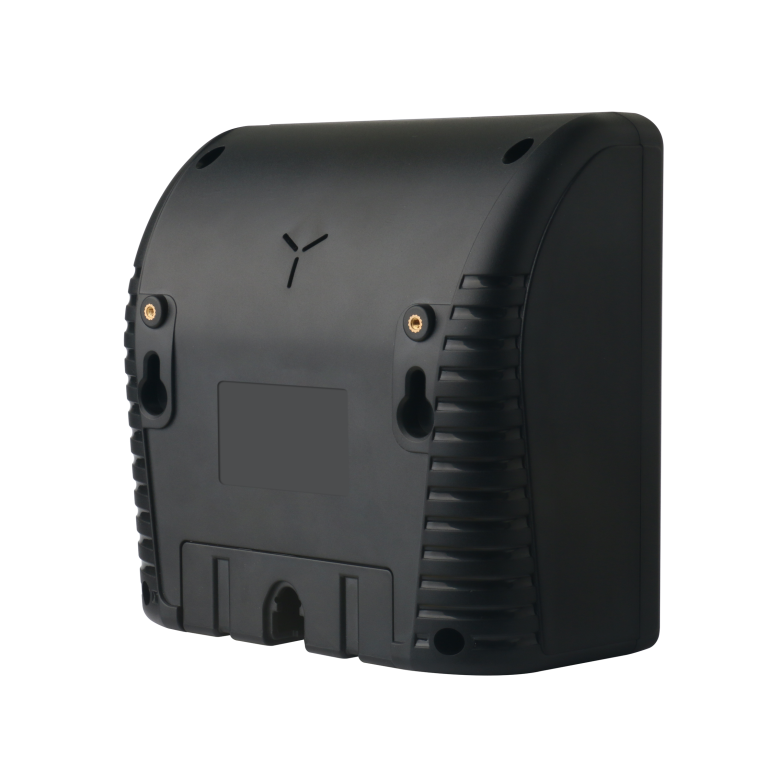

> The bottom and back design are designed to be fixed or hanging positioning empty, can meet different installation requirements.
> High-performance MCU, suitable for continuous high-density operations.
> Dual interface (USB, RS232), by reading the setting code and changing the data line can realize any communication mode of data transmission.
> Support minimum 10% screen brightness read QR code.
Performance parameter
| Communication mode | USB（USB-KBW 、USB-COM ）、RS232 |
| Imaging sensor | CMOS, the global shutter |
| Resolution ratio | 1.3 MP, 1280 * 1080 |
| Resolution | ≥4mil/0.1mm（PCS90%,CODE 39） |
| Pilot lamp | emerald |
| Headlamp | Red LED fill light |
| Knowledge of deep reading | 0mm~500mm (different bar code range) |
| Decoding speed | 120CM /S |
| Reading mode | Continuous reading, induction reading |
| Prompting mode | The LED indicator light, and the horn |
| Angle of field | 46° * 30° |
| Read the Angle | Roll: ± 360°, Pitch: ± 70°, Skew Skew: ± 65° |
| Test Conditions：CODE39,10mil/0.25mm,PCS90% | |
| Print contrast | ≥20% |
| Ambient light | Dark environment, indoor natural light |
| Read code system | 1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, Code 128, GS1-128, ISBT, Code 39, Code 32, Code 93, Code 11, Codabar(NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5), NEC 2of 5, MSI, Telepen, Trioptic, BC412, Febraban The Brazilian bank code, Coupon.
2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Pharma Code(One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc. Other composite codes: GS1 Databar (Omnidirectional, Limited, Expanded), GS1 Composite Code, TLC 39 Code.Chinese ID Card OCR, Passport OCR, etc. Postal code:HongKong 2 of 5(China Post),Korea Post,Australian Post,British Post,USPS Intelligent Mail,Japanese Post,Planet Code,Postnet Code,UPU 4-State,KIX Code |
Note: For different barcodes, because some barcodes are wide or compact, the actual code reading ability is subject to the actual effect.
Mechanical / electrification properties
| Ontology weight | Approximately 535g (excluding wire material) |
| tare | Approx. 865g (USB) |
| Appearance size | L 84.0 mm * H151.5 mm * W151.5mm |
| Packing measurement | L 175 mm * H110 mm * W215mm |
| Wire length | 1.8 Meters |
| interface type | 10 The PIN crystal head |
| working voltage | DC 5V 1A |
| current | 155mA（Average W ork ）, 530mA(Max) |
Work environment
| working temperature | -20℃ to 50℃ |
| storage temperature | -40℃ to 70℃ |
| Working humidity | 5% to 95% (no condensation) |
| Transport vibration test | 10H@125RPM |
List of accessories
| wire stock | USB wire: for connecting the scanner and host and for USB communication. |
| RS232 wire (optional): with DC power head for connecting scanner and host and for serial communication. | |
| USB power line (optional): used to connect scanner and power supply host and for serial power supply. | |
| Power Adapter (optional) | Output: DC5V 1A, inoutput: AC100~240V 50~60Hz, which can be used for serial port power supply. |
Typical value of depth of field
| Barcode type | Barcode density | recently | farthest |
| Code 39 | 0.1mm(4mil) | 0.5mm
0.127 0.127 0.127 0.127 mm |
100mm |
| Code 39 | 0.25mm(10mil) | 0mm | 250mm |
| UPC/EAN | 0.33mm(13mil) | 0mm | 300mm |
| QR Code | 20.0mil | 0mm | 270mm |
| WeChat payment code (the barcode is not enlarged) | .76 Inch screen | 0mm | 450mm |
| Alipay payment code (barcode is not enlarged) | .76 Inch screen | 10mm | 500mm |
（Test conditions: ambient temperature =24℃, ambient illumination = 300 LUX）
