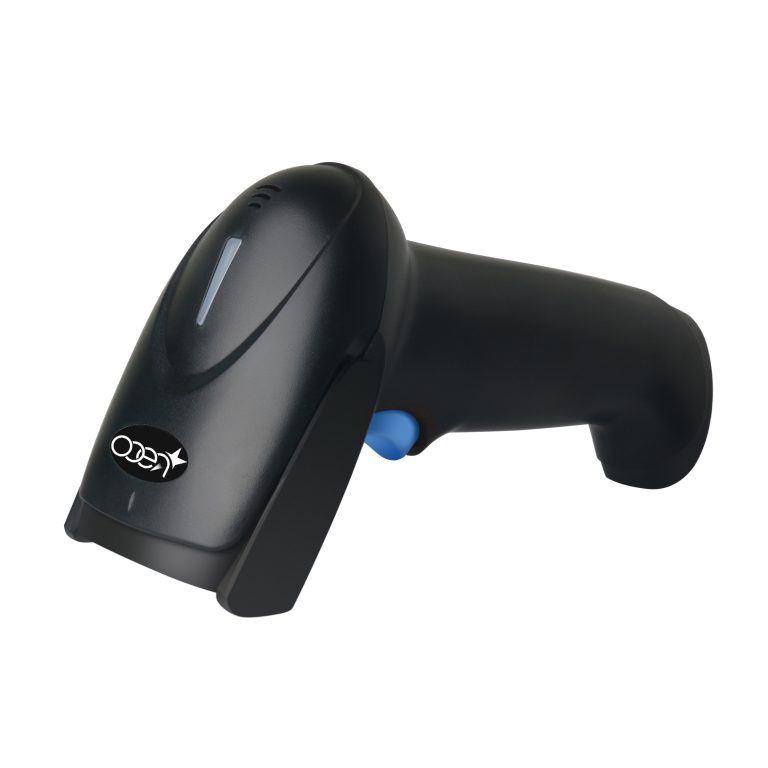

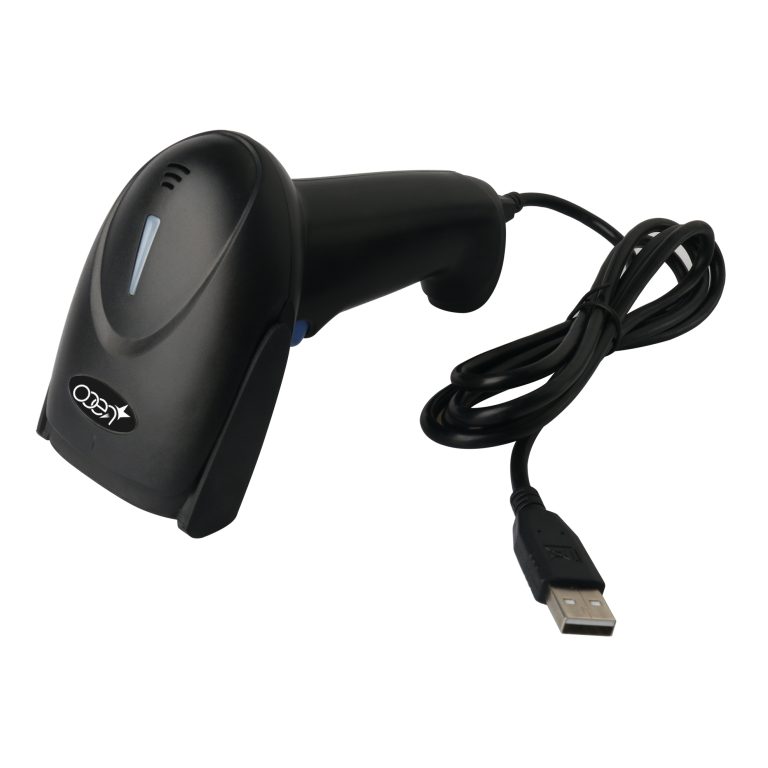

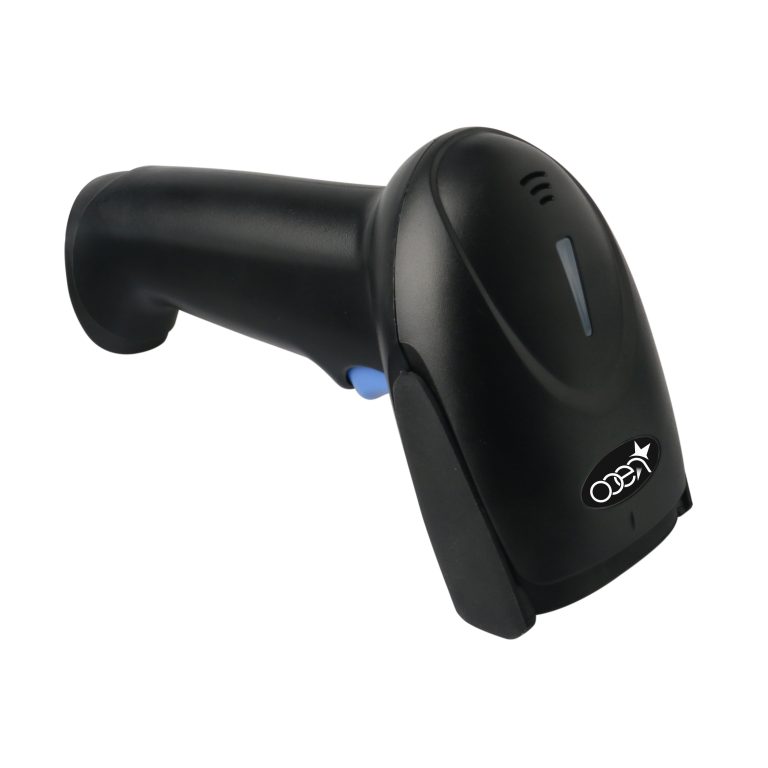

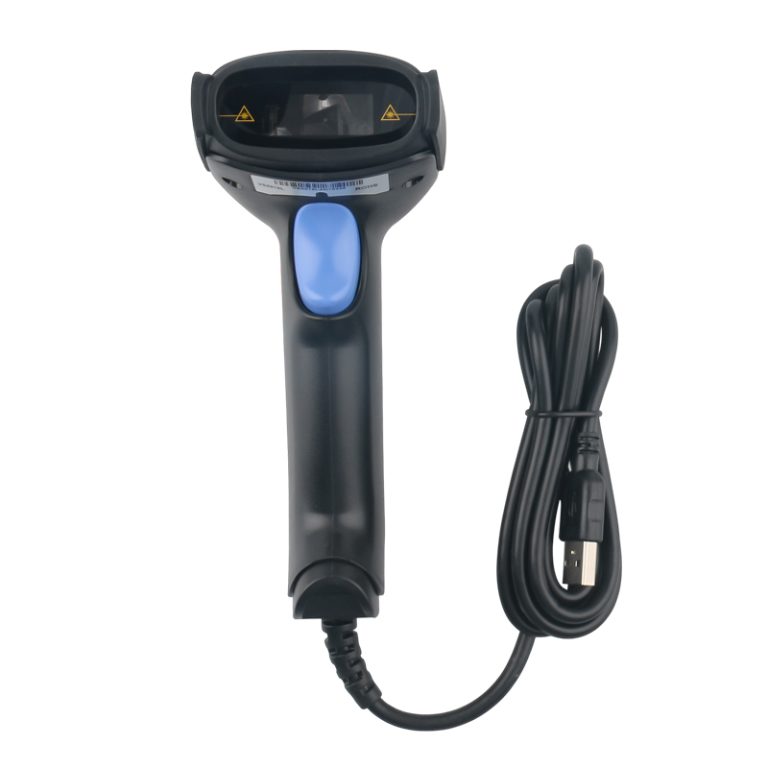

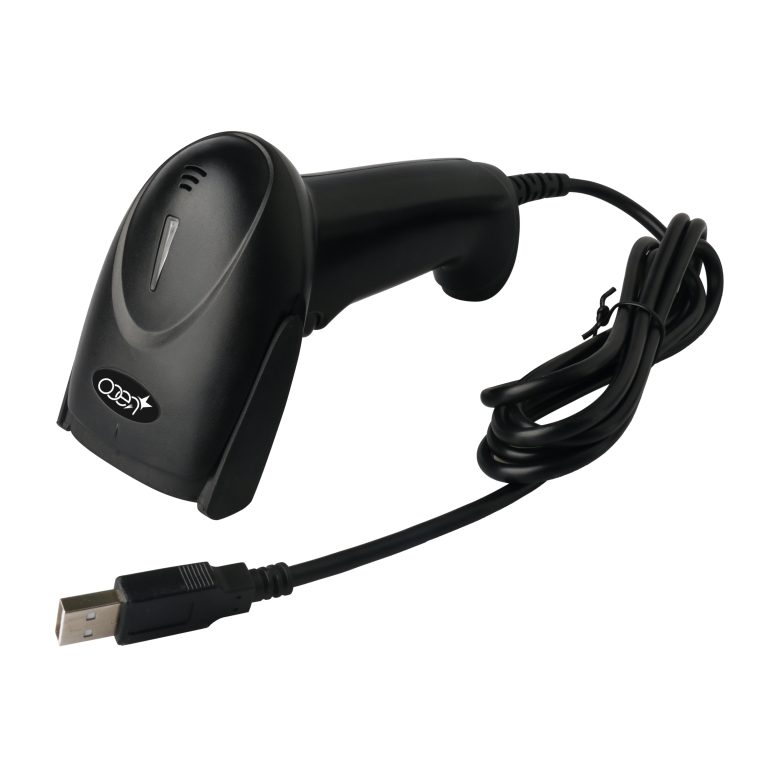

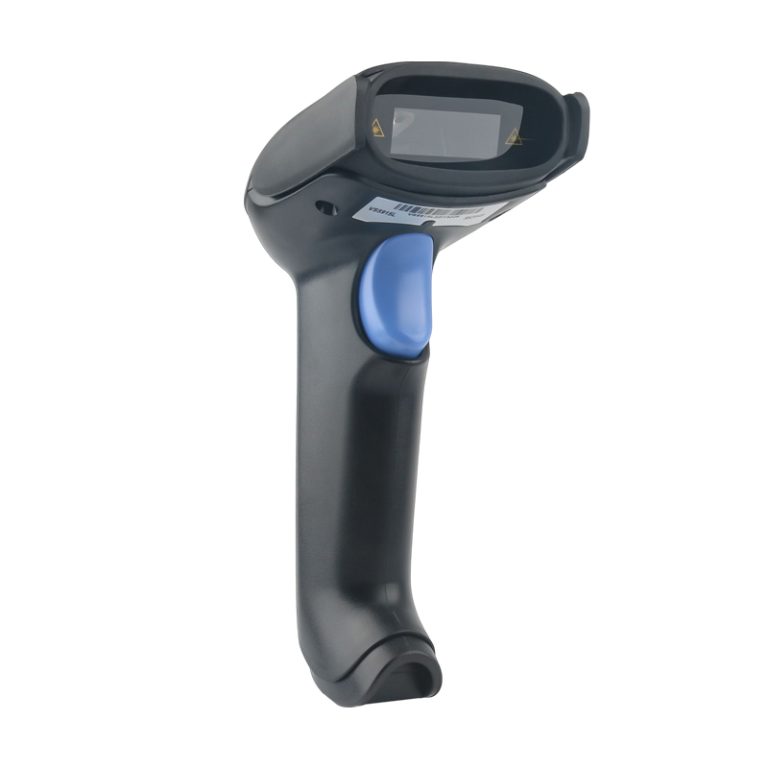

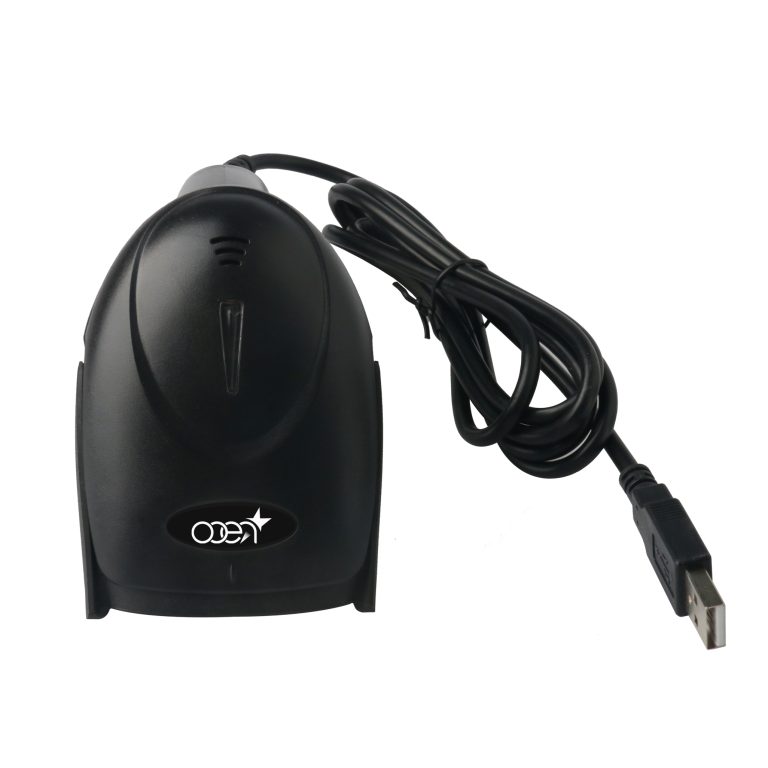

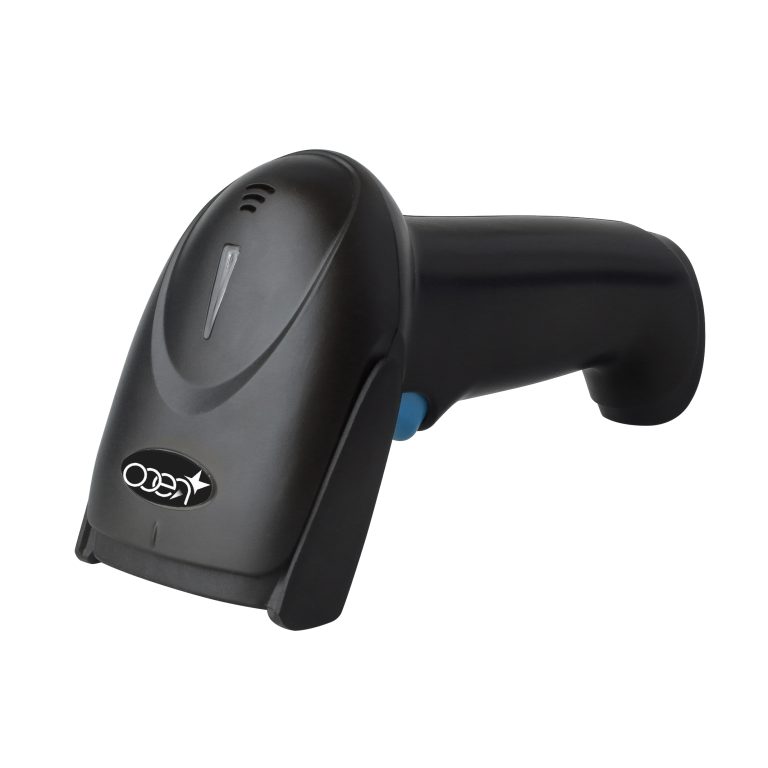

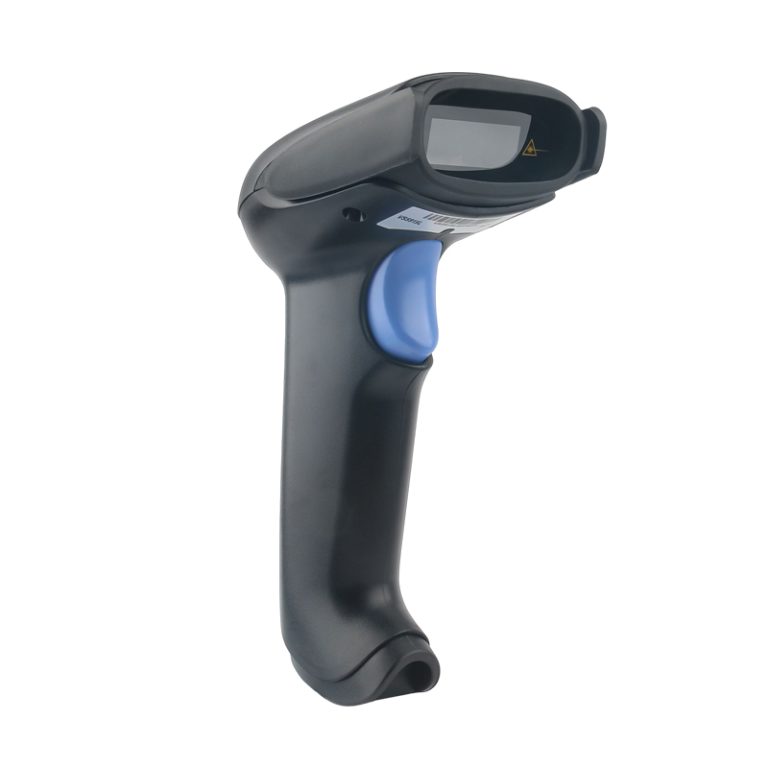

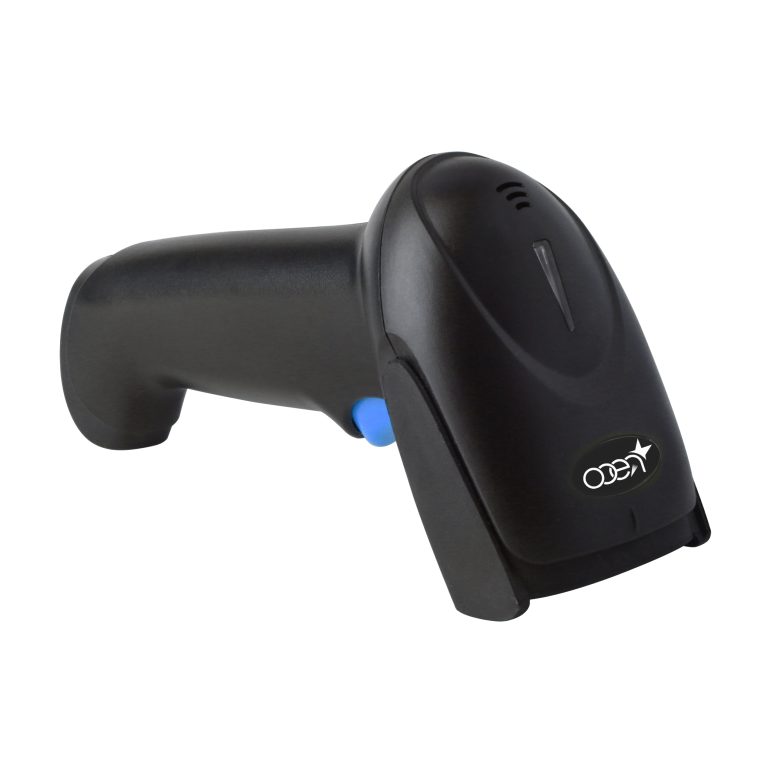

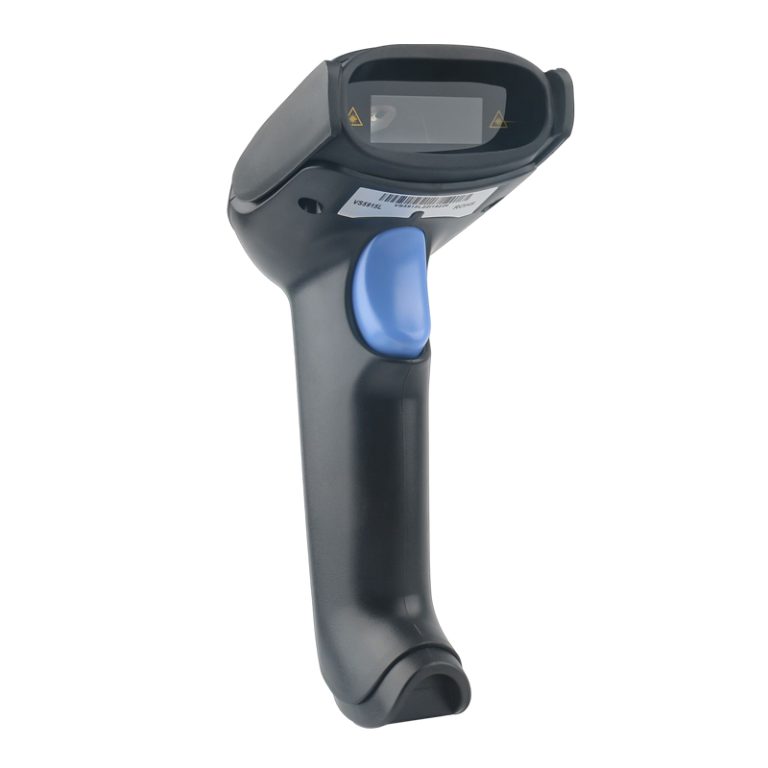

HS2101-1D Handheld 1D CCD wired barcode scanner #2

Share on facebook
Share on twitter
Share on linkedin

>It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.

>It has 1.5 meters wire for excellent communication.

>It can scan barcodes above 4MIL. It can identify all mainstream one-dimensional barcodes in the market.

>It supports multiple working modes (manual, continuous, induction), which can meet different reading requirements.

Product Details

Introduction

HS2101-1D is a handheld one-dimensional barcode scanner.It can read barcodes on different media such as paper, commodities, and screens with excellent scanning performance. It can be mainly used for mobile payment, commodity barcode scanning, inventory counting, etc.

Product Features

>It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.

>It has 1.5 meters wire for excellent communication.

>It can scan barcodes above 4MIL. It can identify all mainstream one-dimensional barcodes in the market.

>It supports multiple working modes (manual, continuous, induction), which can meet different reading requirements.

Performance

Communication Mode USB-KBW
Sensor Linear CCD Sensor
Pixel 1500
Reading Precision ≥4mil/0.1mm(PCS90%,CODE 39)
Depth of Field 45mm~350mm
Decoding Speed Up to 300 times/sec
Reading Mode Manual, Continuous, Flashing, Induction
Prompt Mode LED, Buzzer
Test Conditions CODE39,10mil/0.25mm,PCS90%
Reading Angle Roll: ±30°, Pitch: ±60°, Skew: ±60°
Print Contrast ≥25%
Ambient Illumination Dark Environment, Indoor Natural Light
Code System UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,China Post,etc.

Mechanical/Electrical Parameters

Product Weight 160g (including wire)
Packed Weight 210g
Appearance Dimension 150mm  L  * 70mm W * 95mm H
Packed Dimension L195mm * W105mm * H80mm
Wire Length 1.5 meters
Interface Type USB male
Working Voltage DC 5V
Current 75mA(WORK), 30mA(Standby)

Working Environment

Working Temperature -20℃ to 50℃
Storage Temperature -40℃ to 60℃
Working Humidity 5% to 95%(Non-Condensing )
Transportation Vibration Test 10H@125RPM

Spare Parts List

Cable It is used to connect the scanner and the host for USB communication.
Simple Operation Guide It is used to set the common functions of the barcoder

Depth of Field

Barcode Type Barcode Density Minimum Maximum
Code 39 0.1mm(4mil) 50mm 115mm
Code 39 0.25mm(10mil) 45mm 220mm
Code 39 0.5mm(20mil) 60mm 250mm
Code 39 1.0mm(40mil) 100mm 350mm
EAN-13 0.33mm(13.0mil) 50mm 230mm

(Testing Conditions: Room Temperature 25℃ Ambient Light Illumination 200LUX PCS = 0.9)
