>It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.
>It has 1.5 meters wire for excellent communication.
>It can scan barcodes above 4MIL. It can identify all mainstream one-dimensional barcodes in the market.
>It supports multiple working modes (manual, continuous, induction), which can meet different reading requirements.
Introduction

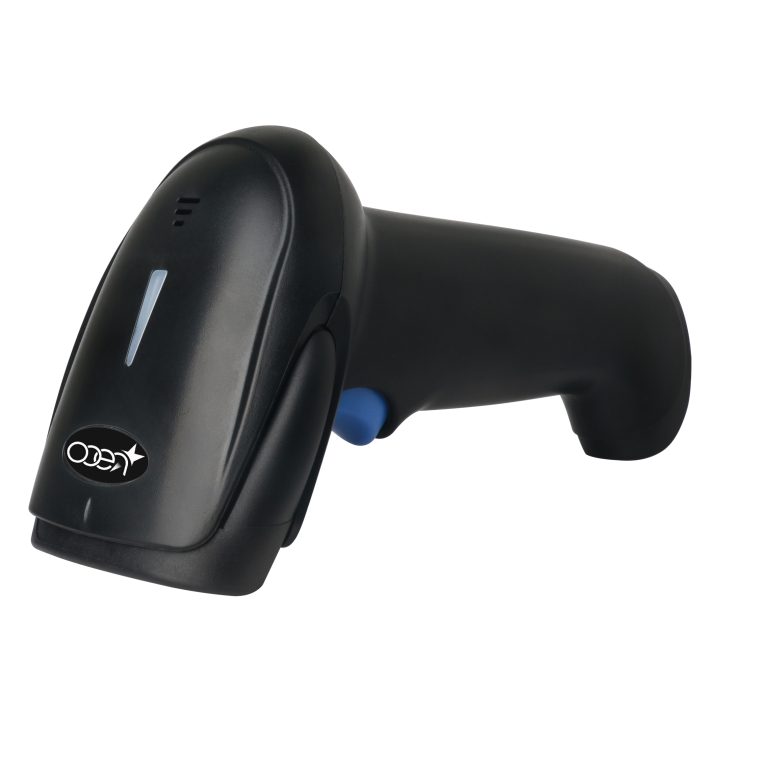

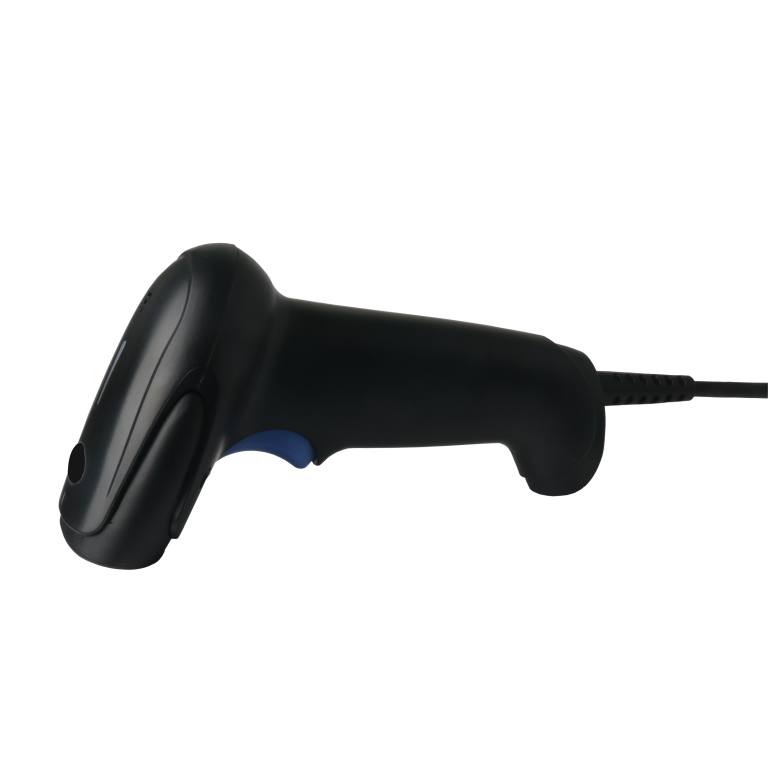

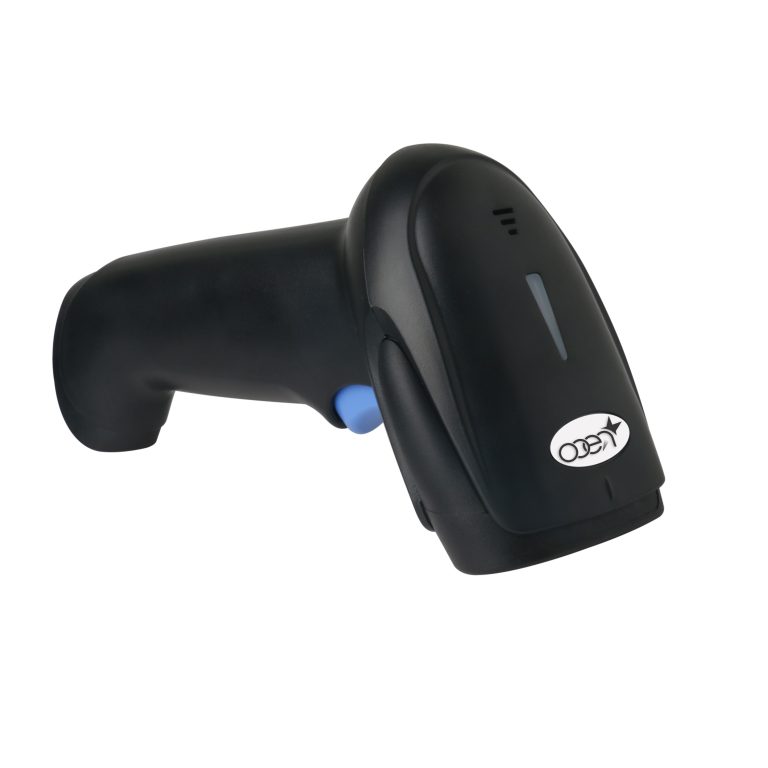

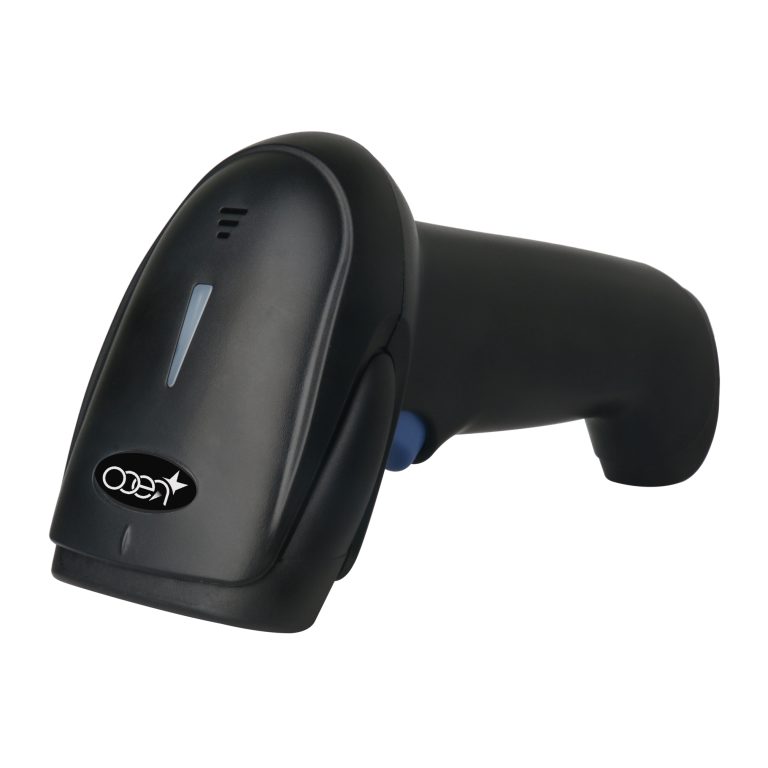

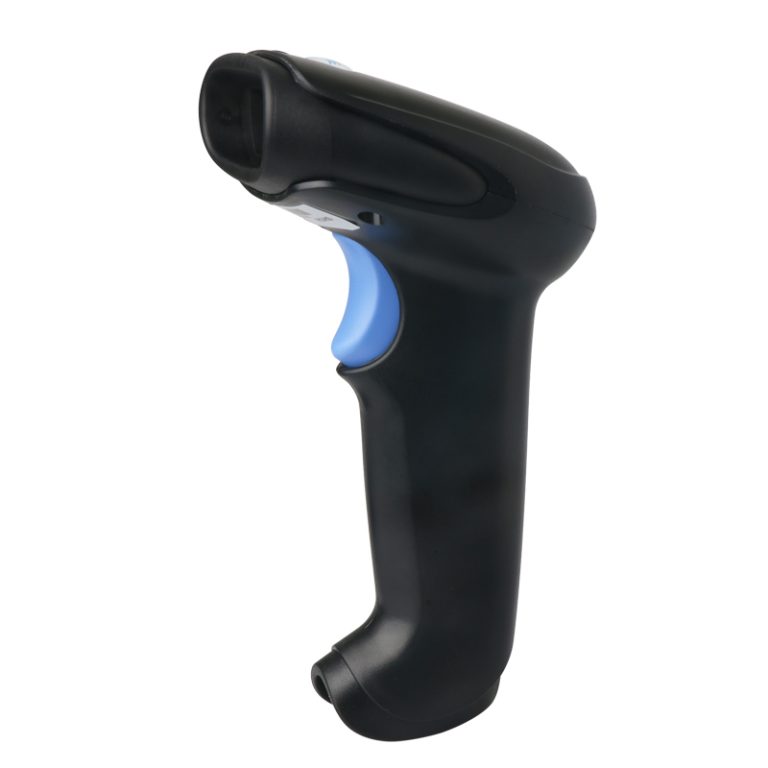

HS2101-1D is a handheld one-dimensional barcode scanner.It can read barcodes on different media such as paper, commodities, and screens with excellent scanning performance. It can be mainly used for mobile payment, commodity barcode scanning, inventory counting, etc.
Product Features
>It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.
>It has 1.5 meters wire for excellent communication.
>It can scan barcodes above 4MIL. It can identify all mainstream one-dimensional barcodes in the market.
>It supports multiple working modes (manual, continuous, induction), which can meet different reading requirements.
Performance
| Communication Mode | USB-KBW |
| Sensor | Linear CCD Sensor |
| Pixel | 1500 |
| Reading Precision | ≥4mil/0.1mm（PCS90%,CODE 39） |
| Depth of Field | 45mm~350mm |
| Decoding Speed | Up to 300 times/sec |
| Reading Mode | Manual, Continuous, Flashing, Induction |
| Prompt Mode | LED, Buzzer |
| Test Conditions | CODE39,10mil/0.25mm,PCS90% |
| Reading Angle | Roll: ±30°, Pitch: ±60°, Skew: ±60° |
| Print Contrast | ≥25% |
| Ambient Illumination | Dark Environment, Indoor Natural Light |
| Code System | UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），MSI Plessey，China Post，etc. |
Mechanical/Electrical Parameters
| Product Weight | 160g (including wire) |
| Packed Weight | 210g |
| Appearance Dimension | 150mm L * 70mm W * 95mm H |
| Packed Dimension | L195mm * W105mm * H80mm |
| Wire Length | 1.5 meters |
| Interface Type | USB male |
| Working Voltage | DC 5V |
| Current | 75mA（WORK）, 30mA(Standby) |
Working Environment
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 60℃ |
| Working Humidity | 5% to 95%（Non-Condensing ） |
| Transportation Vibration Test | 10H@125RPM |
Spare Parts List
| Cable | It is used to connect the scanner and the host for USB communication. |
| Simple Operation Guide | It is used to set the common functions of the barcoder |
Depth of Field
| Barcode Type | Barcode Density | Minimum | Maximum |
| Code 39 | 0.1mm(4mil) | 50mm | 115mm |
| Code 39 | 0.25mm(10mil) | 45mm | 220mm |
| Code 39 | 0.5mm(20mil) | 60mm | 250mm |
| Code 39 | 1.0mm(40mil) | 100mm | 350mm |
| EAN-13 | 0.33mm(13.0mil) | 50mm | 230mm |
(Testing Conditions: Room Temperature 25℃ Ambient Light Illumination 200LUX PCS = 0.9)
