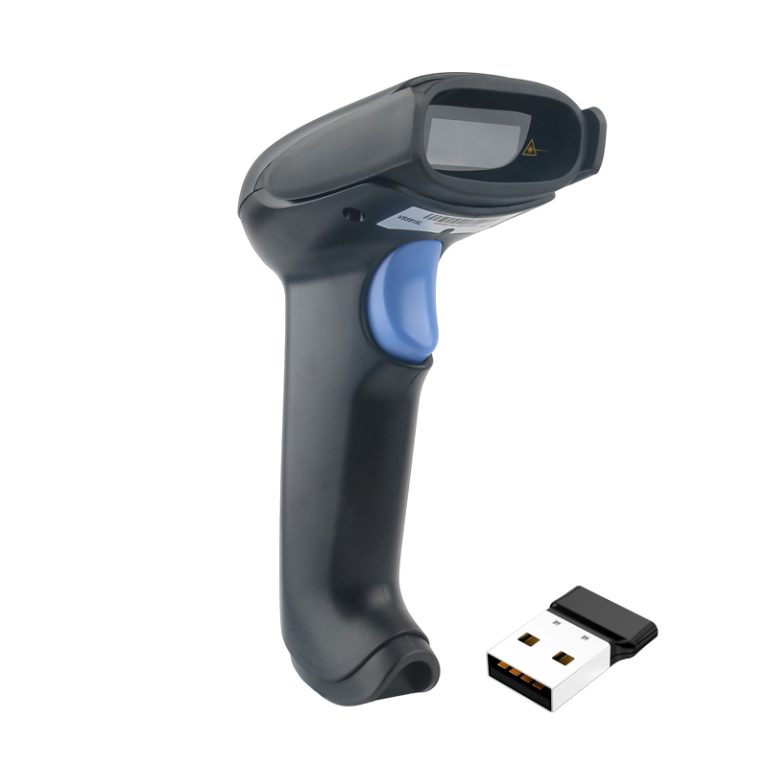

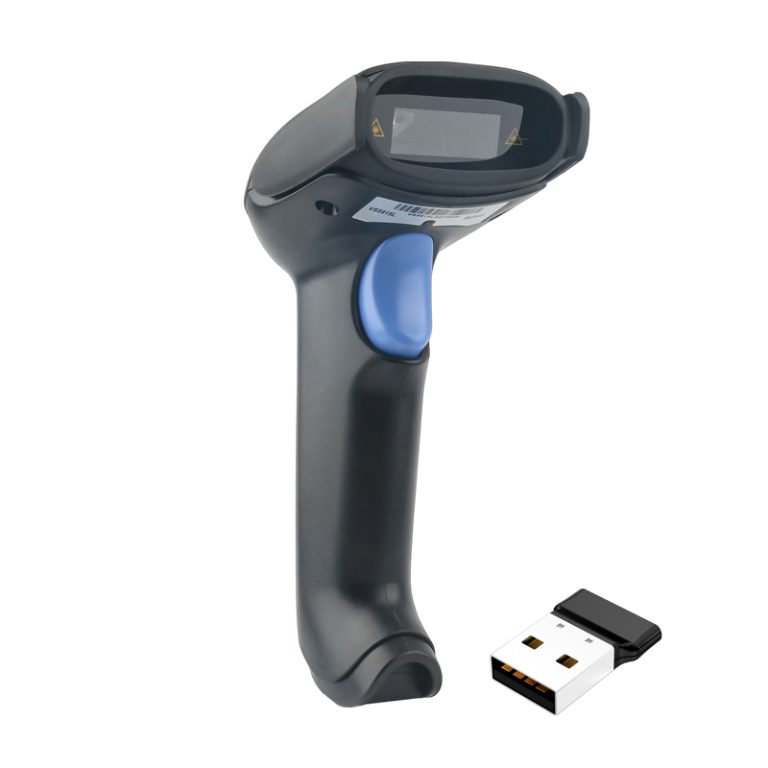

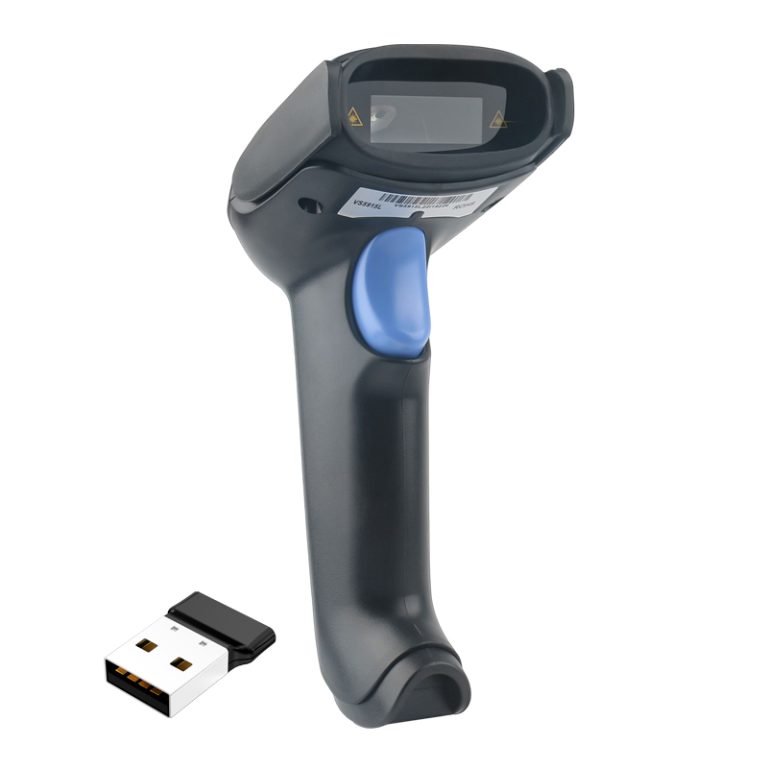

HS2101LG Handheld 1D Laser wireless barcode scanner #2

> Adopt high-performance MCU, easily identify all the mainstream one-dimensional bar codes in the market;

> Easily read the above 3MIL bar code to meet the daily scanning requirements;

> One-dimensional laser technology, for paper, printing, plastic can be easily read;

> Wireless 2.4G transmission technology, reliable outdoor open transmission distance can reach more than 50 meters, while supporting wired transmission without switching;

> Support a variety of working modes (manual, long bright), can meet the different reading requirements;

> Support synchronous mode namely sweep namely transfer, support storage mode;

> Support for online upgrades, custom development, and secondary development.

Chat Now

Product Details

Introduction

The HS2101LG is a general type of hand-held one-dimensional laser wireless barcode scanning gun, with excellent reading performance, and can easily read the barcodes on different media, such as paper and goods. The product uses wireless 2.4G transmission technology, and the effective distance of the outdoor open environment can reach more than 50 meters, and can support both wired and wireless transmission mode. Can be mainly used in commodity barcode scanning, inventory inventory, etc.

Product Features

> Adopt high-performance MCU, easily identify all the mainstream one-dimensional bar codes in the market;

> Easily read the above 3MIL bar code to meet the daily scanning requirements;

> One-dimensional laser technology, for paper, printing, plastic can be easily read;

> Wireless 2.4G transmission technology, reliable outdoor open transmission distance can reach more than 50 meters, while supporting wired transmission without switching;

> Support a variety of working modes (manual, long bright), can meet the different reading requirements;

> Support synchronous mode namely sweep namely transfer, support storage mode;

> Support for online upgrades, custom development, and secondary development.

Performance

Communication Mode	USB-KBW, Wireless 2.4G
illuminant	Visual laser laser at 650nm
bit error rate	1/500 million
Resolution	≥3mil/0.076mm（PCS90%,CODE 39）
Knowledge of deep reading	5mm~500mm
Decoding speed	Up to 500 beats / second
Reading Mode	Manual reading, often bright reading
Prompt Mode	LED, Buzzer
Reading angle	Test Conditions：CODE39,10mil/0.25mm,PCS90% Rotate Roll: ± 30°, tilt Pitch: ± 70°, skew Skew: ± 65°
Print contrast	≥30%
Ambient light	indoor natural light,
Code System	UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，China Post，etc.

Wireless Parameters

Wireless Communication Mode	Synchronous mode, storage mode
Data interface	Wired USB, wireless 2.4G
Wireless Standard	2.4GHZ（ISM Frequency Band）
Transmit Distance	2.4GHz,50meters （Open distance ）
Storage Capacity	512Kb （over 4,000 Product code ）
Battery Capacity	1200mAh
Charging interval	About 3 hours
Working Duration	≥24hours
Sleeping Duration	≥4 Weeks
Supported System	Windows，Mac OS，IOS, Linux，Unix，Android

Mechanical/Electrical Parameters

Product Weight	About 110g (including wire)
Appearance Dimension	150mm L * 70mm W * 95mm H
Wire Length	1.5 meters
Interface Type	USB (B Type)
Working Voltage	DC 5V
Current	60mA（WORK）

Working Environment

Working Temperature	-0℃ to 50℃
Storage Temperature	-30℃ to 60℃
Working Humidity	5% to 95%（Non-Condensing ）
Transportation Vibration Test	10H@125RPM

Spare Parts List

Wire stock	Connect the scanner to the host for charging and communication of the scanner
Wireless receiver	Connect to the host for data reception of the scanner.
Simple operation guide	Used to set the common functions of the bar coder

Depth of Field

Barcode Type	Barcode Density	Minimum	Maximum
Code 39	0.076(3mil)	20mm	65mm
Code 39	0.1mm(4mil)	15mm	90mm
Code 39	0.127mm(5.0mil)	10mm	120mm
Code 39	0.5mm(20mil)	15mm	500mm
EAN-13	0.33mm(13.0mil)	15mm	260mm
